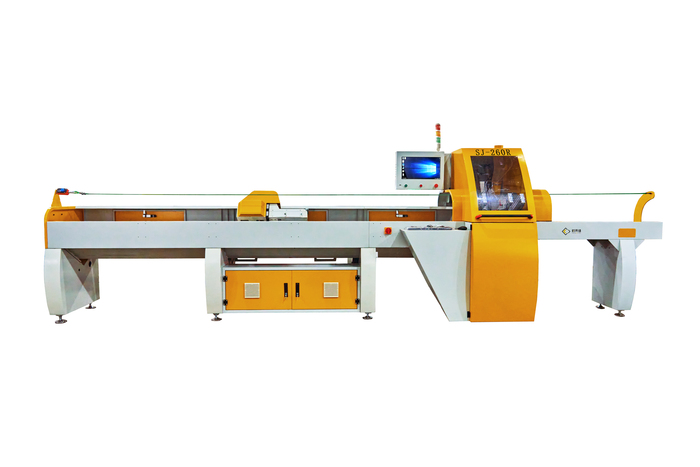

精选裁断锯 SJ-260R
时开纽精选裁断锯 -SJ-260R 专为批量加工和材料优选而设计，无论是整屋定制、门窗企业，还是中式家具和新中式企业，只要你有下精料的要求，SJ-260R都可以成为您的得力助手。
多功能精选裁断系统：
弯料较直、长度优选、价值优选、固定裁截、配套扫码加工。
自动检测和送料系统：
自动检测材料的长度，画线位置，根据长度自动送料。
在送料系统后退时，扫描材料表面的画线，以及材料的长度，控制计算机同步数据并优化。
SJ-260R precision cutting saw is designed for batch processing and material selection. Whether you're a whole-house customization company, a door and window manufacturer, or a Chinese-style furniture and New Chinese-style furniture company, as long as you require precise material selection, the SJ-3100 can be your powerful assistant.
Multi-functional precision cutting system:
Straightens curved materials, optimizes length and value, provides fixed cutting, and includes barcode scanning processing.
Automatic detection and feeding system:
Automatically detects the material length and marked line position, and automatically feeds the material according to the length.
When the feeding system retracts, it scans the marked lines on the material surface and the material length, and the control computer synchronizes the data and optimizes the process.
设备尺寸：6166(L)*1036(W)*1710(H)
加工材料尺寸：3100(L)*150(W)*90(H)
控制系统：自主研发控制系统（非第三方开发），支持定制，支持升级。
Windows主机(DELL品牌)：3.3GHz+12G+128SSD+WiFi+显示屏
**进料速度：40m/min
裁截电机功率：4Kw
裁截系统：可变速度和行程的精准裁截系统，适用不同材质和硬度的材料。
锯片规格：孔径φ25.4，锯片直径φ＜410mm。常用规格：400mm、405mm、350mm。
Equipment Dimensions: 6166(L)*1036(W)*1710(H)
Processing Material Dimensions: 3100(L)*150(W)*90(H)
Control System: Self-developed control system (not third-party developed), supports customization and upgrades.
Windows Host (DELL brand): 3.3GHz + 12G + 128SSD + WiFi + Display
Maximum Feed Speed: 40m/min
Cutting Motor Power: 4Kw
Cutting System: Variable speed and stroke precision cutting system, suitable for materials of different materials and hardness.
Saw Blade Specifications: Hole diameter φ25.4, saw blade diameter φ＜410mm. Common specifications: 400mm, 405mm, 350mm.
设备优势——带给您的益处
产能可达到手动断料锯的3~6倍---有效助您提高产能
设备操作仅需一人---为您节省宝贵的人力成本
裁截后的短小废料，自动丢弃---有效节省操作员的取料时间
导入Excel文件，或者扫码导入数据---实现工厂的高度自动化生产，减少出错。
**的优选功能---助您实现最高出材率，降低原材料成本。
绝对的裁截精准度和裁截质量---为您的产品质量保驾护航。
Skyniu Direct软件--通过预优选提高加工效率，有效优化BOM清单。
以上就是我们设备的功能参数简介，如果您对这台设备的更多配置、功能和价格有兴趣或者疑问，请随时联系您身边的时开纽服务专员。
或者致电：0512 68411918
Equipment Advantages – Benefits for You
Production capacity can reach 3-6 times that of a manual cutting saw – effectively helping you increase production capacity.
One-person operation required – saving you valuable labor costs.
Automatic disposal of short scrap after cutting – effectively saving operator time.
Importing Excel files or data via barcode scanning – achieving a high degree of automation in factory production and reducing errors.
Superior optimization function – helping you achieve the highest output rate and reduce raw material costs.
Absolute cutting accuracy and quality – safeguarding the quality of your products.
Skyniu Direct software – improving processing efficiency through pre-optimization and effectively optimizing the BOM list.
The above is a brief introduction to the functional parameters of our equipment. If you are interested in more configurations, functions, and pricing of this equipment, or have any questions, please feel free to contact your local Skyniu service specialist.
Or call: 0512 68411918
