设备简介
CNC-1225-J数控榫槽系统集：铣孔、铣槽、铣型、起线等功能于一体的实木加工设备，是针对仿古典家具和新中式家具定向研发的数控木工设备，适用于新中式、红木等实木家具行业，是行业内效率和功能较高的多功能实木加工中心。
CNC-1225-J具有加工方孔、圆孔、插肩母榫、铣型、榫槽、燕尾榫等功能，并可以更具实际客户的工艺需求进行编程，简单的尺寸输入，就可以完成复杂的加工需求，并且有多面加工时程序自动翻转的功能。
Equipment Introduction
The CNC-1225-J CNC mortise and tenon system is a solid wood processing machine integrating functions such as milling holes, milling grooves, milling profiles, and mortising. It is a CNC woodworking machine specifically developed for imitation classical furniture and new Chinese style furniture, suitable for the new Chinese style, mahogany, and other solid wood furniture industries. It is a highly efficient and multifunctional solid wood processing center in the industry.
The CNC-1225-J has functions such as processing square holes, round holes, dovetail joints, milling profiles, mortises, and dovetail joints. It can be programmed according to the actual process requirements of customers. Simple dimension input can complete complex processing needs, and it also has the function of automatic program flipping when processing multiple surfaces.
技术参数
技术参数: |
|
|
**加工长度： | Maximum machining length: | 2200mm |
**钻孔深度： | Maximum drilling depth: | 60mm |
**工件高度： | Maximum workpiece height: | 130mm |
**榫槽宽度： | Maximum width of mortise | 130mm |
**榫槽深度： | Maximum groove depth: | 60mm |
**钻孔刀直径： | Maximum drilling tool diameter: | 16mm |
主轴最高转速： | Spindle maximum speed: | 18000r/min |
工作电压/频率： | Operating voltage / frequency: | 380V/50Hz |
平均功率/**功率： | Average power / maximum power: | 6.2Kw/10.7Kw |
设备外形尺寸： | Equipment dimensions: | 4200*1731*1741 |
气压 | Intake pressure | 0.5-0.8Mpa |
电压 | Voltage | 380V |
净重 | Weight | 3000Kg |
吸尘口 | Diameter of dust collector | ∅100mm |
数据保存 | Data preservation | 60组 |

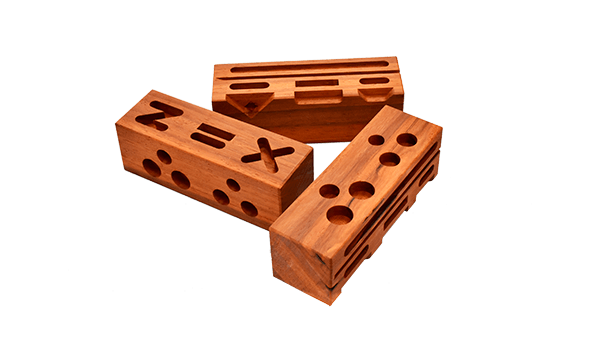

样品展示
