设备简介

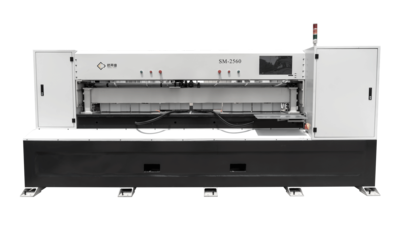

时开纽门窗加工中心—SM-2560，是定向研发的高速门窗铣型开榫一体加工中心，操作更方便、更人性化，可生产多种形式的榫卯，芯板铣型、护墙板加工、地板加工，45°、90°门窗榫卯加工。
SM-2560 is a high-speed doors and windows milling, mortise and tenon machining center with directional research and development. It is more convenient and humanized to operate. It can produce various forms of mortise and tenon, core board milling, wall panel processing, floor processing, 45° 、90° doors and windows tenon processing.
生产加工全部模块化，用户无需计算加工数据，只需要输入材料规格等数据。
The production and processing are all modularized, no need to calculate the processing data, only need to input the material specifications and other data.
将门窗的榫卯和铣型加工兼并到一台设备 (持续升级中)，广泛应用到家具榫卯的生产加工。
Merge the mortise and milling processing of doors and windows into one equipment(continuous upgrading), which is widely used in the production and processing of furniture mortise and tenon.
工艺特点
1、前挡料靠栅自动停靠，任意宽度材料无需手动调整靠栅。
2、加工靠料靠栅自动避让，超宽材料加工时不影响放料。
3、工艺：45°榫接（单双），直榫，135°榫接，中腰线（加工工艺线、顶头修边），可定制榫头。可对实木料、包覆料、实木多层板、涂泥线条、等材料加工。
4、芯板铣型、竖框铣型、边框铣型，铣型和榫卯加工一次完成。
5、适用：全屋定制，橱柜、衣柜、相框、房门等组框拼接产品，组框结构美观，精确度高，一体化成型，方便简捷。独特的带预铣工艺能解决各种爆边问题。
6、便捷：榫头、榫眼的位置、尺寸配合在人机界面上设定，可预存300条产品程序。
7、若工艺较复杂，需调整设备当前工艺，我们可为您定制榫卯结构.
1. The front guide rail automatically stops the material, eliminating the need for manual adjustment of the rail for materials of any width.
2. The processing rail automatically avoids obstacles, ensuring that extra-wide materials are not affected during processing.
3. Processes: 45° tenon joints (single and double), straight tenons, 135° tenon joints, center waistline (processing line, top edge trimming), custom tenons are available. Processing is possible for solid wood, veneered materials, multi-layer solid wood boards, coated moldings, and other materials.
4. Core board milling, vertical frame milling, and border milling are all completed in one operation.
5. Applications: Suitable for whole-house customization, cabinets, wardrobes, picture frames, doors, and other frame assembly products. The frame structure is aesthetically pleasing, highly precise, and seamlessly integrated, offering convenience and ease of use. The unique pre-milling process solves various edge chipping problems.
6. Convenience: The position and size of the tenons and mortises can be set on the human-machine interface, with up to 300 pre-stored product programs.
7. If the process is complex and requires adjustment of the current equipment process, we can customize a mortise and tenon structure for you.
技术参数
设备尺寸/Size： | 4400(L)*1610(W)*1740(H) |
加工材料尺寸/Material size： | 2500(L)*60(W)*60(H) |
控制系统/Control system： | 自主研发的双系统(无需第三方服务)，CNC数控（定制）+模块化(傻瓜式)，支持定制，免费功能升级。 Independently develop dual systems (without third-party service), CNC + modularization, support customization and free function upgrading. |
人机交互/Computer configuration： | 基于Windows系统，方便扩展和开发。Based on Windows system, it is easy to expand and develop. |
伺服参数/Servo parameters： | 品牌伺服 (Brand servo)，移动速度 (Moving speed)：27000mm/min |
主轴参数/Spindle parameters： | 铣切主轴 1pcs (Milling cutter spindle)：12000rpm 5.5Kw，铣孔主轴 1pcs (Milling hole spindle) ：18000rpm，3.5Kw，铣型主轴 1pcs (Milling shape spindle) ：9000rpm，11Kw |
加工系统/Processing system： | 系统自动控制：拉槽加工和铣孔加工。 System automatic control: slot broaching and milling hole processing. |
刀具规格/Tool specification： | 铣切主轴 (Milling cutter spindle)：φ30，铣孔主轴 (Milling hole spindle)：ER25(4~16mm)， 铣型主轴 (Milling shape spindle)：φ35，φ＜126mm |
材质和重量/Material and weight： | 一体化机身+钣金 (Integrated body + Sheet metal)，2500Kg |
电压/频率/功率： Voltage/Frequency/Power | 三相380V/50Hz +保护地线 21.5Kw。 |
吸尘口/Suction port： | Φ100*3 |
气压/Air pressure： | 0.5~0.8Mpa，φ10气管 |
润滑油/lubricating oil： | Hv32 |
